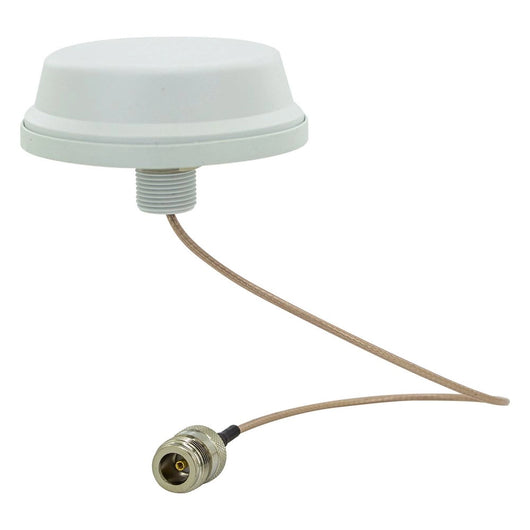

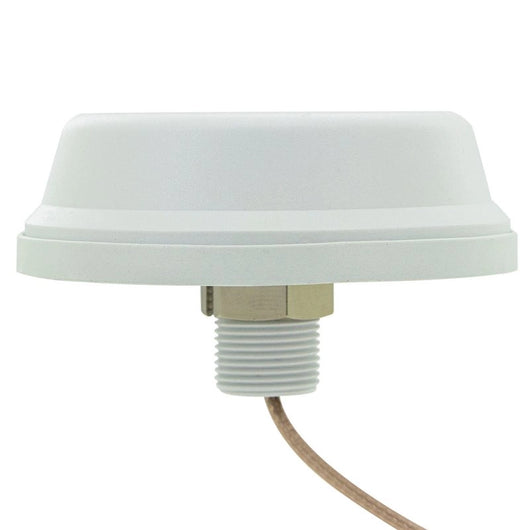

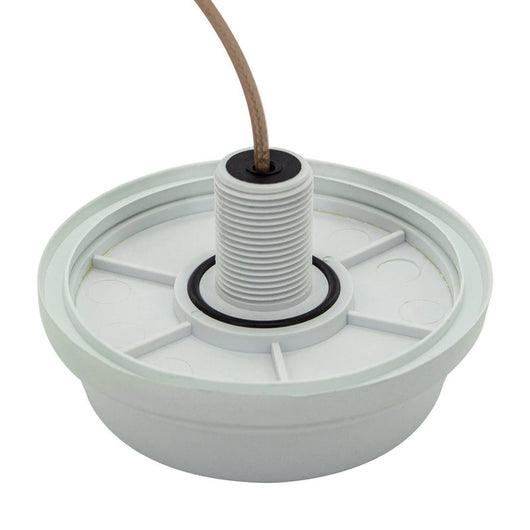

1-4dBi LTE 700-960/1575-2700MHz White Omni-Directional Ceiling Puck Antenna

We’re sorry, but this product has been discontinued. Please see above for similar or newer versions, or feel free to contact us for further assistance.

Contact Us

Description

This item is now discontinued, please contact us for alternatives.

  • Designed for LTE/GSM/3G/WiFi wireless communications
  • Gold/Nickel Plated contacts - High Quality Gold/Nickel Plated N-Type Female Connector with 30cm of RG316 coaxial cable
  • Operating frequency: 700-960/1575-2700MHz
  • Easy to Install - With no visible fixings
  • Antenna type: Ceiling/Roof screw
  • Gain: 1-4dBi
  • VSWR: = 2.0
  • Polarisation: Linear vertical
  • Temperature: -40 to +85 degreesC
  • Humidity: 40 to 95% RH


Omni-directional antenna perfect mounting onto plasterboard or suspended ceilings, fitted with an N-Type connector


Additional Information

Key Specifications

Cable: RG316

Cable Length: 30cm

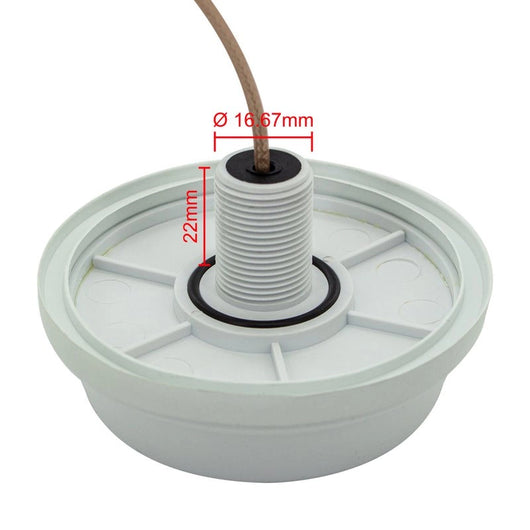

Dimensions: (L) 45 x (W) 80 x (H) 45mm

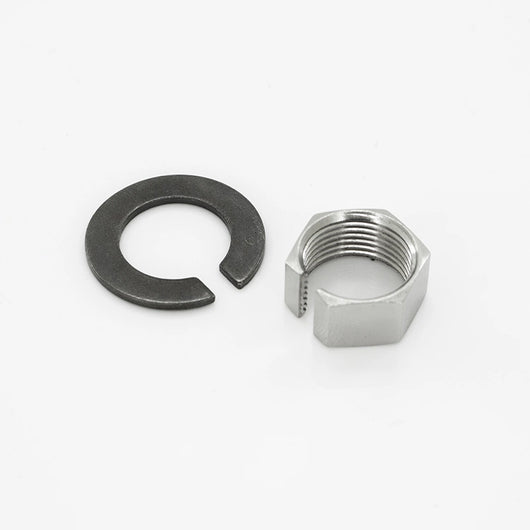

Please Note - You need to ensure you have access to the ceiling void in order to connect up the cable and secure the nut, These antennas are ideal for installation on false ceilings
